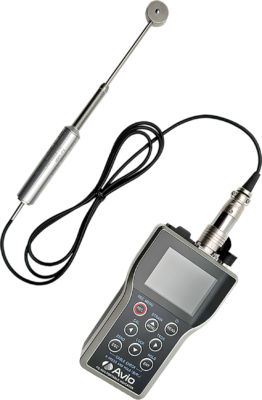

Digital Force Gauge
FG-400 & TJ Series
- Compact and light weight
- 3-way power supply
- Display hold function is equipped
- Easy zero adjustment function
- Automatic recognition of the type of sensor
- Judgment function (High & Low) is equipped
* Calibration certificate for FG-400 is not free of charge. Please ask sales representative for quotation.
* FG-400 and TJ series are sold separately.
| FG-400 | |
|---|---|
| Display | 4digi (t 0000-9999)N |
| Zeroing Adjustment | Automatic regulation by switching |
| Hold Function | Sample/Peak |
| Interface | RS-232C |
| Power Source | Use by AA type battery, Ni-H type battery or Dedicated AC adapter (AC100 – 240V 1Φ) |
| Dimension / Weight | W77 x D140 x H27mm ≈300g |
| TJ-1A | TJ-20R or TJ-20A | TJ-100R or TJ-100A | TJ-500R or TJ-500A | |
|---|---|---|---|---|
| Measuring Range | 0 – 10N | 0 – 196N | 0 – 980N | 0 – 4900N |
| Critical Load | 20N | 294N | 1470N | 7350N |
| Accuracy | ±2% (of full scale) | |||
Pressure Sensor for Incorporation into Equipment.
| TJS-1R | TJS-20R | TJS-100R | TJS-100A-NA124 | TJS-500A-NA126 | |
|---|---|---|---|---|---|
| Measurement Range | 0 – 10N | 0 – 196N | 0 – 980N | 0 – 980N | 0 – 4900N |
| Critical Load | 20N | 294N | 1470N | 1470N | 7350N |
| Accuracy | ±3% (of full scale) | ||||
| Applicable Welding Head | NA-121,122,123 NA-131,132,142 NA-111,112 NA-151,152,153 |
NA-124 NA-125 NA-154 NA-155 |
NA-126 | ||
* A pusher is optionally required for integration into the Welding Head.
Examples for integration of the sensors into the Welding head
