Drive Unit for Pulse Heat Unit (Hot Bar Bonder)
Motor Drive & Controller

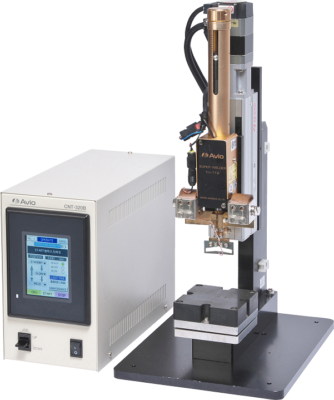

CNT-320A & NA-201P, NA-202P
- Motor drive with 1μm resolution supports precise welding
- It equips with a pressure stability function to keep the pressure stable and to improve the quality of welding
- It reduces pressure damage by using a position control function during welding
- It reduces heat damage by using high pressure/low temperature welding processes with a max. 300 N force (When NA-202P is used)
- It provides intuitive operation by color touch panel and lever jog switch
- Soft-landing process with a slow moving speed of 0.1mm/sec is provided
- Seven operation conditions can be saved
Items | CNT-320A & NA-201P/NA-202P | |
---|---|---|
Drive Method | Motor | |
Stroke | MAX 50mm, 1μm Step | |
Power Source | DC24V ±10% 4A (Option: AC Adapter AC100 – 240V) |
|
Dimension / Weight |
CNT-320A | W120 x D230 x H207mm ≈3kg |
NA-201P | W52.5 x D78.5 x H276.1mm ≈2kg | |
NA-202P | W69 x D99.5 x H336.3mm ≈4.2kg |
CNT-310 & NA-201
- It equips with soft landing & teaching function
- Operation speed can be switched by Five steps
- Operation position can be set by Four points
- Timing of welding can be confirmed by LED
Items | CNT-310 & NA-201 | |
---|---|---|
Drive Method | Motor | |
Stroke | Max 50mm, 10μm Step | |
Power Source | DC24V ±10% 2A (Option: AC Adapter AC100 – 240V) | |
Dimension / Weight | NA-201 → W50 x D82.5 x H320mm ≈2kg | CNT-310 → W80 x D211 x H188mm ≈2kg |
Air Drive
NA-221, 222
Manual Drive
NA-231
Items | NA-221 | NA-222 |
---|---|---|
Drive Method | Air | Air |
Stroke | Max 50mm | Max 50mm |
Speed Control | with Speed Controller (Φ4mm Tube) | with Speed Controller (Φ6mm Tube) |
Air Pressure | 0.05 – 0.6MPa | 0.4 – 0.6MPa |
Dimension / Weight | W78 x D83 x H280mm ≈1.3kg | W86 x D85 x H289mm ≈2.2kg |
Items | NA-231 | |
---|---|---|
Drive Method | Manual by Foot Pedal | |
Stroke | Max 10mm | |
Height Control | Range 40mm | |
Dimension / Weight | Drive Unit → W51 x D79 x H192mm ≈1kg | Foot Pedal → W124 x D268 x H125mm ≈2.2kg |
