Pulse Heat System Head

Sold By:
Ito America, Ito Europe, Ito India

Precision heads for demanding joining and welding operations.

  • High reliance joining through direct pressurization.
  • Soft landing function.
  • Teaching function.
  • 6 operation speeds.
  • 4 settable positions.
  • LED for weld time display.
  • Advanced design prevents welding cable and other issues from affecting applied pressure.

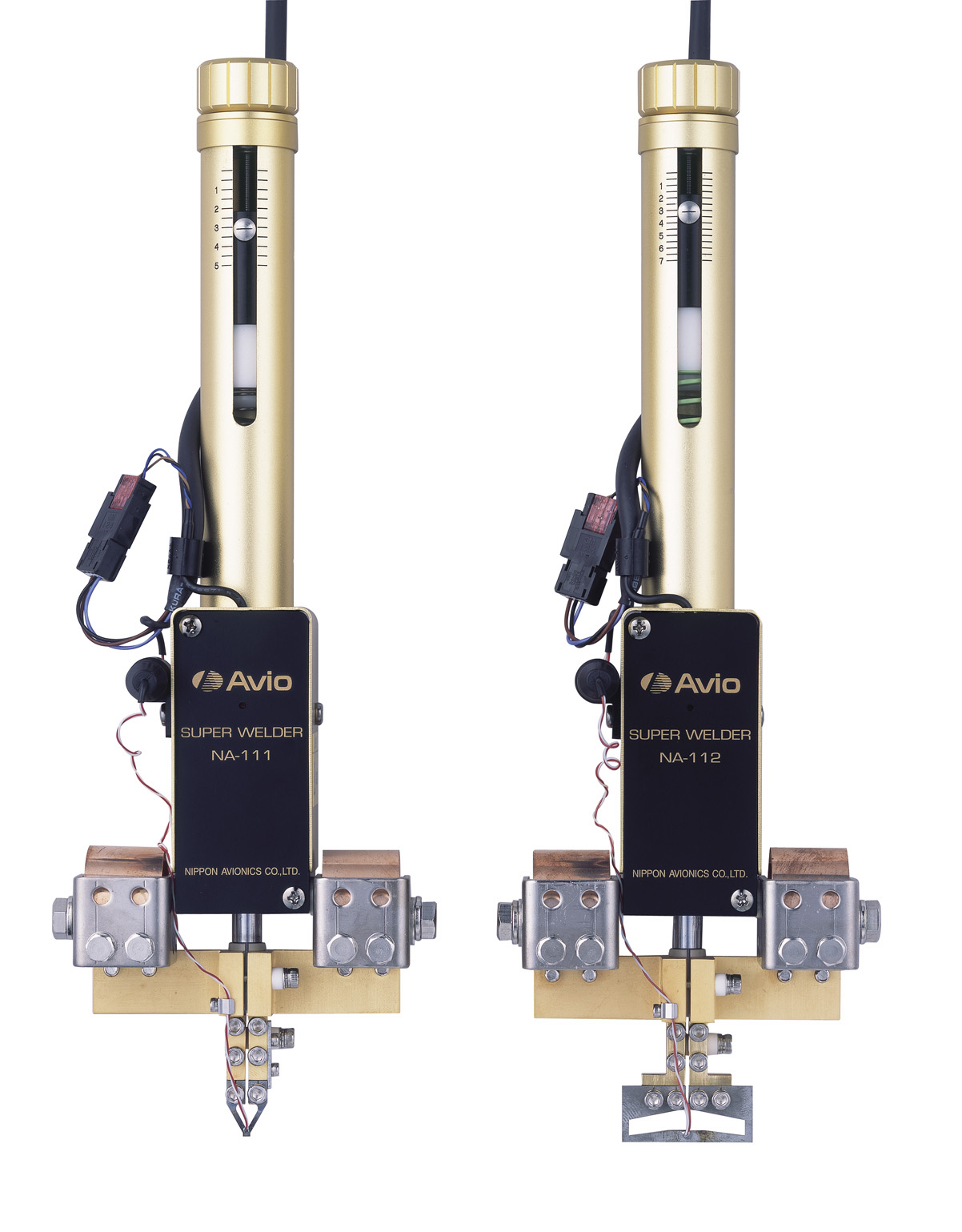

NA-111 NA-112
Pressure Range 0.7 – 5N 5 – 65N
Pressure Method Spring Spring
Electrode Stroke Max 50mm Max 50mm
Dimensions(mm) 106W x 48D x 287H 106W x 48D x 285H
Mass 0.6Kg 0.6Kg
Items NA-151 NA-152 NA-153 NA-154
Pressure Range 1.2-7N 5-70N 20-150N 40-300N
Pressure Method Spring
Applicapable Heater Tip Heater Tool Type
L40mmMax x W4mmMax
Heater Tool Type
L100mmMax x W4mmMax
Dimensions 124W x 54.8D x 298Hmm ≈ 1Kg 145W x 64.5D x 332Hmm ≈ 2.2Kg
Drive Method Manual, Motor, Air Air
