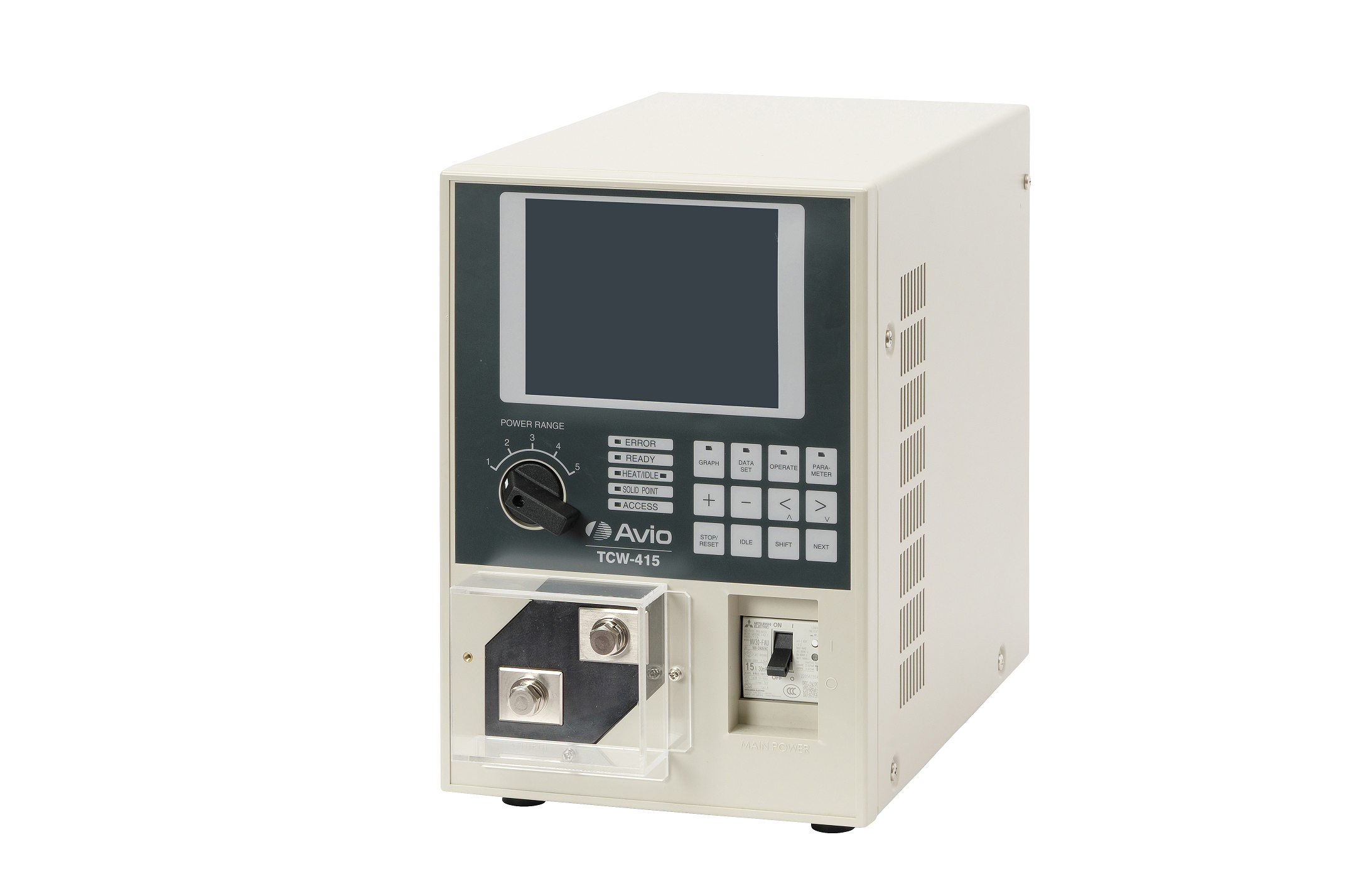

General Purpose Pulse Heat Power Supply

Sold By:
Ito America, Ito Europe, Ito India

A general purpose pulse heat power supply suitable for most pulse heat joining applications.

  • Easily set thermal profiles.
  • Built-in monitoring functions and feedback systems.
  • Standard functions
    • Digital PID control.
    • Temperature monitoring: Upper & Lower limit (Average, Peak), Profile
    • Error Reporting: Overheat, Thermocouple Open, Out of Range, etc.
    • Programmability: 15 recipes
    • RS-232C interface
      • Up and down signals for head movement
      • Air-cooling control signal
      • Auxiliary thermocouple input terminal
TCW-315
Temperature Range Ambient -600℃ (1℃ increments) Rated Power 750VA
Time 000-999 (x100msx10ms) Suitable for Head NA-62D,62F,66,75
Transformer Built-in Power Source 1Φ AC200-230V±10%
Tap Voltage 0.88, 1.24, 1.75, 2.47, 3.5V Dimensions 200Wx320Dx283H ≈ 20kg
